How to Measure a Replacement Screw or Bolt: Diameter, Length and Thread
What this guide covers
  1. Quick answer
  2. Separate attributes, not one combined guess
  3. Measurement reference diagram
  4. Before you measure
  5. Least-invasive checks, in order
  6. What your measurements may — and may not — tell you
  7. Metric/imperial recording worksheet
  8. Outside what this guide covers
  9. Maintenance and prevention
  10. FAQ
  11. Related checks
  12. Sources

Matching a replacement screw or bolt takes more than length and diameter. Thread pitch, head style, drive type, tip, material, and grade markings are separate attributes, and getting one wrong can mean a fastener that looks right but doesn’t actually fit or perform the way the original did.

Quick answer

Measure length and diameter carefully, noting that where you start measuring length depends on the head style. Use a thread pitch gauge if you can, since a ruler alone may not distinguish fine pitches reliably. Record everything in the original unit of measurement, and treat any metric-to-imperial conversion as a reference note, not a rounded substitute. A known matching nut can check thread engagement only; for a guard, hinge, safety-critical part, or any uncertain application, use the manufacturer’s exact part specification or qualified help.

Separate attributes, not one combined guess

A fastener is defined by several independent attributes, and matching only one or two of them doesn’t mean the replacement is actually suitable:

Attribute What it means Why it matters on its own
Length Overall length, measured from a reference point that depends on head style Too long can bottom out or protrude; too short may not engage enough thread
Nominal diameter The fastener’s designated size (e.g., 1/4 inch, M6) Determines what it can thread into, but doesn’t confirm pitch
Thread pitch / TPI How closely spaced the threads are — threads per inch (imperial) or millimeters between threads (metric) Two fasteners with the same diameter can have different pitches and will not interchange
Head style Flat/countersunk, pan, round, hex, socket cap, and others Affects both appearance and how length is measured
Drive/recess Phillips, Pozidriv, Torx, hex, slotted, and others A separate question from thread fit — see RFSE’s driver-fit guide
Tip Pointed, blunt, self-drilling, and others Affects how the fastener starts into material
Material / finish Steel, stainless, brass, plated, coated, and others Affects corrosion resistance and compatibility — not reliably identifiable by color alone
Property / grade marking Where applicable, head markings may identify a property class, grade, or maker Meaning depends on the governing standard and cannot be inferred safely from appearance alone

Matching length and diameter alone doesn’t confirm a replacement is suitable — thread pitch, head style, and grade can all differ between two fasteners that look similar at a glance.

Stop and get exact manufacturer specification or qualified help if… the fastener is part of a guard, blade, hinge or spring assembly, child-safety hardware, a structural furniture joint, vehicle equipment, a gas appliance, a pressure system, or electrical grounding or bonding. These applications depend on the fastener’s exact specification in ways a visual or rough measurement match cannot confirm.

Measurement reference diagram

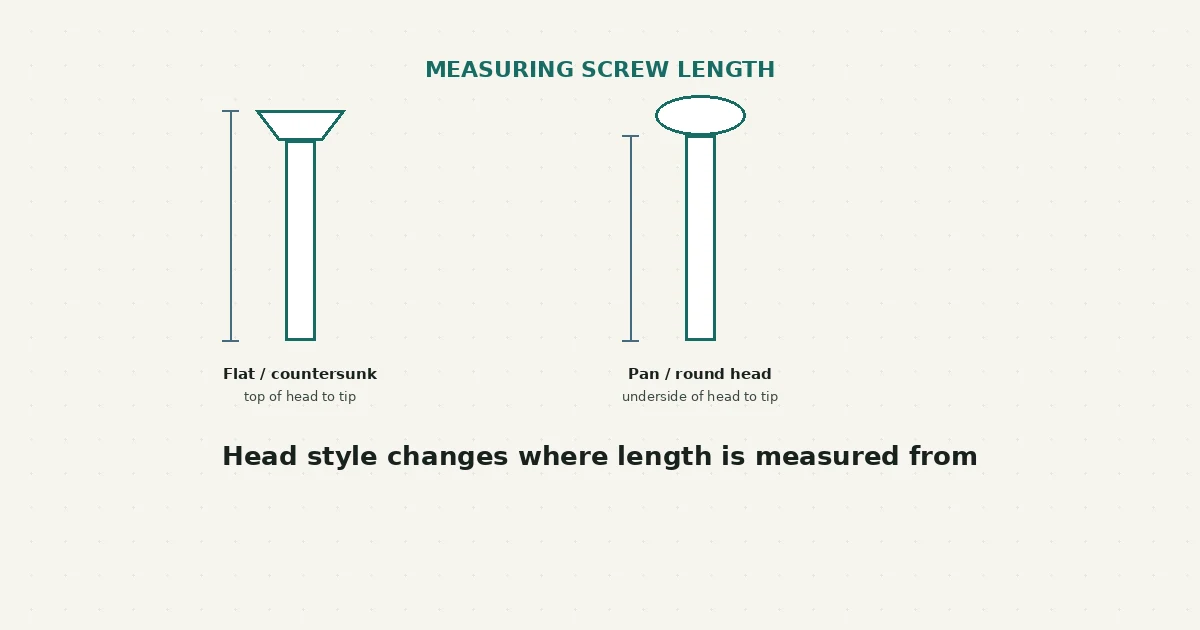

Screw and bolt measurement reference diagram Two fasteners shown side by side. A flat, countersunk head is measured from the top of the head to the tip, since the head sits flush with the surface. A pan or round head is measured from the underside of the head to the tip, since the head sits above the surface. Diameter is measured across the outer thread edges. length (flat head) Flat / countersunk measured top of head to tip length (pan/round head) Pan / round head measured underside of head to tip
Head style changes where length measurement starts — general convention, not a substitute for manufacturer drawings.

Before you measure

  • Have a ruler or, ideally, calipers, plus a thread pitch gauge if precision matters for the application.
  • Identify the head style first, since it determines where length measurement starts.
  • Have something to write on — recording measurements as you go is more reliable than trying to remember them.

Least-invasive checks, in order

  1. Identify the head style — flat/countersunk, pan, round, hex, socket cap, or another type — since this changes where length is measured from.
  2. Measure length according to the head style: from the top of the head to the tip for a flat or countersunk head that sits flush, or from the underside of the head to the tip for styles that sit above the surface. Record the figure in whichever unit system your ruler or calipers use.
  3. Measure the outer thread diameter across the widest point of the threaded section, not the smooth shank if there is one.
  4. Check thread pitch with a pitch gauge if you have one. According to the American National Standards Institute’s overview of ASME B1.1, the Unified Inch Screw Thread standard covers thread series such as UNC (coarse) and UNF (fine) for inch-based fasteners, distinguished by threads per inch — a detail a ruler alone can’t reliably resolve, especially for fine pitches.
  5. Note the drive/recess type separately — this doesn’t affect thread fit, but it’s a separate spec you’ll need for the replacement to be usable with the tools you have.
  6. Note material, finish, and any visible grade or property markings on the head, without assuming what they mean — grade markings follow specific standards, and guessing at their meaning from appearance isn’t reliable.
  7. Record everything in the original measurement system (imperial or metric), and add a converted figure only as a secondary reference — don’t round a converted value and treat it as if it were a standard size in the other system.
  8. If precision matters — for a structural, safety-critical, or exact-fit application — use the manufacturer parts list or qualified technical help. A known matching nut may check whether the threads engage, but it does not verify length, head geometry, material, coating, strength, or suitability.
Never do this: force a candidate fastener into a threaded hole that resists it; mix metric and imperial threads on the assumption they’re “close enough”; substitute a self-tapping screw for a machine screw or vice versa without verifying it’s appropriate; or change length, strength grade, material, coating, washer stack, or head style from the original without a verified specification. Any of these can result in a fastener that fails under load or damages the threads it’s installed into.

What your measurements may — and may not — tell you

What you measured What it may suggest What it does not confirm
Length and diameter both appear to match A plausible starting candidate Thread pitch, grade, material suitability, or exact fit
A pitch gauge leaf seems to fit A reasonable pitch estimate The complete thread standard or application suitability; other attributes still require verification
The head color or finish looks similar to the original Nothing specific on its own Corrosion suitability, heat resistance, food-contact suitability, or electrical grounding function
A marking is visible on the head Possibly a grade or property indicator Its exact meaning, without cross-checking the specific standard it belongs to

Measurement narrows down candidates — it doesn’t replace a verified specification when precision genuinely matters.

Metric/imperial recording worksheet

Record these fields as you measure

  • Head style: ______________________
  • Length, original unit: ______   Length, reference conversion: ______
  • Diameter, original unit: ______   Diameter, reference conversion: ______
  • Thread pitch / TPI (gauge-confirmed, if possible): ______________________
  • Drive/recess type: ______________________
  • Material/finish (as observed, not assumed): ______________________
  • Visible head marking, if any (don’t interpret yet): ______________________

Outside what this guide covers

This guide covers measuring and recording a fastener’s attributes for comparison. It does not cover interpreting grade or property markings with certainty, verifying corrosion or heat suitability, or confirming a fastener is appropriate for a safety-critical, structural, gas, pressure, or electrical grounding application — those require exact manufacturer specification or a qualified professional, not a measurement alone.

Maintenance and prevention

  • When you disassemble something, keep the original fasteners together and labeled rather than mixing them with a general hardware bin.
  • If you regularly work on the same piece of equipment, record its fastener specifications once, in detail, so you’re not remeasuring from scratch each time.
  • Keep a basic thread pitch gauge on hand if you replace fasteners more than occasionally — it resolves the one measurement a ruler genuinely can’t.
  • When in doubt about a safety-critical application, the cost of a manufacturer part or a hardware professional’s input is small compared to the cost of a failure.

FAQ

Can I identify metric vs. imperial threads just by looking?

Not reliably — the two systems can look similar at a glance. A thread pitch gauge or a test fit with a known nut is a more reliable way to confirm which system you’re dealing with.

Is it fine to round a converted measurement to the nearest standard size?

No — treat a converted figure as a reference note only. Rounding it and calling it a standard size in the other measurement system can result in a fastener that doesn’t actually fit.

Does a shiny or dark finish tell me what material a fastener is made of?

Not reliably — appearance alone doesn’t confirm material, corrosion resistance, or grade. If that matters for your application, verify it rather than guessing from color.

What’s the strongest way to verify an exact replacement?

A manufacturer’s exact replacement specification is the strongest reference when available. A known matching nut can test thread engagement but cannot guarantee the correct length, head, material, coating, or strength. For critical applications, qualified technical assessment still needs the equipment specification.

Before you get to measuring a replacement, you may need to remove the original fastener — if it’s stripped, this guide to low-risk steps for a stripped screw head covers that first. And if you’re comparing driver types as part of identifying the original fastener, this driver-fit guide covers that separately from thread and length matching.

New to RFSE? See how to approach any RFSE guide safely, or browse the full Fix Basics hub for more guides like this one.

Sources

This guide uses ANSI’s overview of ASME B1.1 for Unified inch-thread terminology and Accu’s manufacturer engineering guide for general length, major-diameter, and pitch measurement conventions. Exact standards, grade meanings, tolerances, and application specifications vary, so manufacturer documentation or qualified technical help controls when precision matters.
